Guitar Chord Theory - The Crash Course!

This series of guitar chord theory lessons will give you a crash course in how chords are constructed. I've spent a lot of time refining and condensing this course so you only learn what you really need to know.

The benefits of learning chord theory

Guitarists often learn chords by using chord charts, which is fine for knowing where to put your fingers, but it's also beneficial to understand what's happening "behind the scenes", the mechanics of why chords sound the way they do. That way, you'll be able to get exactly the sound you want from your music.

However, in my opinion, the main practical benefit of learning chord theory is that you'll see a clearer connection between scales and chords, as they're both made from the same building blocks (intervals). You'll be able to hear a chord and know exactly which notes to target in a soloing phrase.

That's why, when guitarists ask me "how do I apply scales over chords?", the first piece of advice I offer them is to "learn chord theory!".

The bottom line is, this course will cut your improvised "trial and error" time in half, so you can focus more of your time on making music that sounds good.

Note that guitar chord theory is not for beginners! You need to at least have a basic understanding of intervals.

The Series at a Glance...

small chevron Major, Minor and Suspended Chords (on this page, see below)

small chevron Augmented & Diminished Chords

small chevron 7th Chords

small chevron Extended Chords

small chevron Alternate Chord Voicings (part i)

small chevron Alternate Chord Voicings (part ii)


Chord construction basics

A chord is a type of musical structure, built from 3 or more notes. For example, C major contains the notes C, E and G.

C, E and G are therefore the building blocks of the C major chord.

However, when learning chord construction, it's far more effective to think of these building blocks as intervals rather than notes. It means you only have to learn each chord once and simply move the formation of notes to a new fret to play a higher or lower sounding version of that same chord. This will become clearer as we progress...

The chromatic scale

Just like scales, chords are built from a series of intervals. As mentioned earlier, you ideally need a basic understanding of intervals before you take this course, but to recap, there are 12 intervals in total that make up what is known as the chromatic scale...

1 b2 2 b3 3 4 #4
b5
5 #5
b6
6 b7 7

A chord can be built by first selecting the 1 note. This is called the root note as it is the 1st note in the scale. You could see this as the foundations of the chord structure.

We then select two or more additional intervals from the scale (e.g. the 3 and 5) and build them on the root note to create the chord (so in our example we'd have 1 3 5).

1 b2 2 b3 3 4 #4
b5
5 #5
b6
6 b7 7

Click to hear 1 3 5 played as a chord - listen closely, I use three root notes - G, E and C#. Notice how each chord has exactly the same quality, we're just playing the 3 and 5 in relation to different root notes.

The root (sometimes abbreviated as R) is always the reference note when writing a chord, so when you see Gmaj, Gm or G7, you'll know the root note is G.

Emaj, Em or E7, you'll know the root is E.

C#maj, C#m or C#7, you'll know the root is... yep, C#.

It's the different combinations of intervals stacked above that root note that give us the different chord types. We'll be looking at some of the most common chord types throughout the series.

That, in a nutshell, is how chords are constructed. Now, let's lift open the hood and get into the mechanics behind different types of chord you'll come across...


Major chord theory - major triads

A major triad consists of a major 3rd (3) and perfect 5th (5) above the root (1). These intervals make up a major chord in its simplest form.

1   3   5

The root (1) is always the note by which the chord is referenced (letters A through to G).

For example, G major is so-called because its root note lies on G. We can abbreviate this chord as G or Gmaj. E major would be abbreviated E or Emaj. C# major would be abbreviated C# or C#maj.

Here's how a major chord would typically be mapped out on the fretboard...

E form major chord with 1 3 5 triad intervals

As you can see, all the notes of the major triad are included in the chord form. We could play from the low E 6th string, the A string (the root doesn't have to be the lowest sounding note in the chord!), D string or G string, basically any set of strings that include the 1 3 5 triad structure.

Again, let's create a familiar R 3 5 major chord with the bass root on the A string, allowing us to play the same chord in a different position on the fretboard...

major chord form with A string root

So again, we could play from the A string, D string or G string, as each would include the major triad.

See the bigger picture

Don't limit yourself to the E and A form barre chords just because they're the most commonly used. The below video shows you how you can pull chord voicings (such as 1 3 5) right out of a scale pattern. This is your first step in connecting chords and scales...



Minor chord theory - minor triads

So, we learned the major triad was made up of the root, major 3rd and 5th.

The minor triad is made up of the root, minor 3rd and 5th. The word "minor" in the context of a "minor chord" refers to the presence of the minor/flat 3rd.

1   ♭3   5

So technically it's that minor 3rd interval above the root which gives minor chords their sound. The 5th is neutral, which is why it's used in both major and minor chords. Think of it as adding more meat to the chord.

All that we change from major triads is flatten the 3rd a half step - in other words, move it down one fret. This gives us what is abbreviated as a 3 (a minor 3rd interval).

If we use the same chord form as before, but with a minor 3rd, we get this...

minor barre chord form with triad tones (1 b3 5)

See how that 3rd has been flattened/moved down 1 fret from its major 3rd interval?

Remember, the letter used when writing chords is determined by the root note, so if the root was positioned on the note B, the chord would be B minor (Bmin or Bm for short).

And with an A string chord? We can see how it's the same as the major chord but with the 3rd flattened one fret position (one semitone)...

minor chord form with A string root


Suspended chord theory - sus4 and sus2 chords

Suspended (abbreviated as "sus") chords refer to any chord that does not contain a major or minor 3rd. This means suspended chords are neither major nor minor, as the 3rd is responsible for making a chord major or minor.

Below are the elements of a suspended 4th chord (e.g. Gsus4, Fsus4, Esus4)

1   4   5

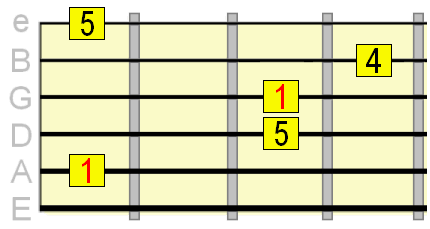

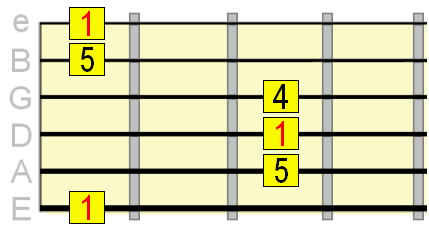

So basically, the 3rd is replaced by the perfect 4th interval. The 4th lies one half step/semitone higher than the major 3rd - the equivalent of one fret, as we can see in the E and A string forms from earlier...



That's a suspended 4th chord and would be written as Bsus4 if, for example, the root note was B.

When playing these chords, try and internalise their sound. What mood do they convey?

You can also have suspended 2nd (e.g. Bsus2. Csus2) chords where the 3rd is omitted and a major 2nd interval is used instead.

1   2   5

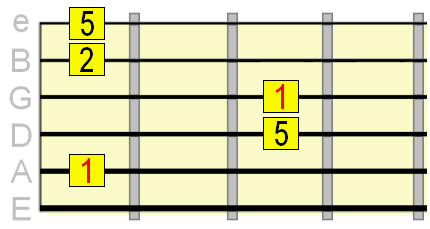

suspended 2nd chord on the A string

Just think of "suspended" or "sus" as meaning "no 3rd". This means suspended chords are neither major nor minor.

In guitar chord theory, whenever the 3rd is not part of the chord, you effectively have a major/minor neutral sound. Incidentally, that means both major and minor scales will work over them.

The below video looks at a few ways you can use suspended chords in your playing...

link to video on how to use suspended chords

Time for a break...

So we've covered how the basic major, minor and suspended chords are constructed. You may not realise, but countless hit songs exclusively use the three chord types we've studied on this page!

Go back and review this lesson if you need before moving onto the next part.

And remember, learning guitar chord theory is so much easier once you know the fretboard.
